ATS - Motoric Actuator

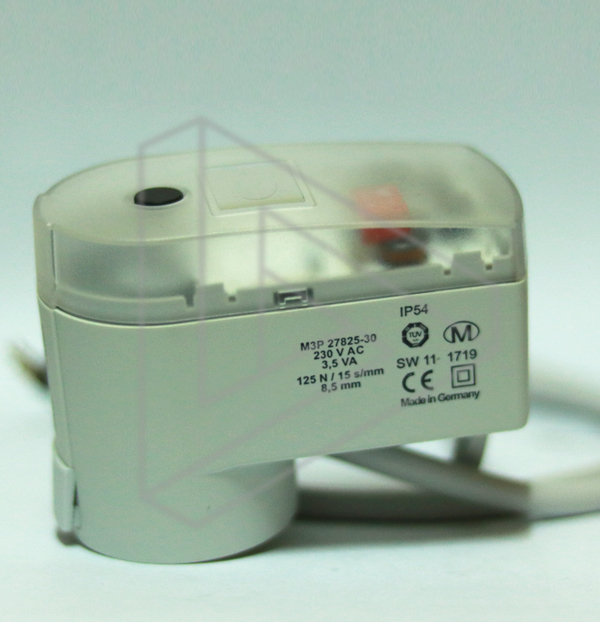

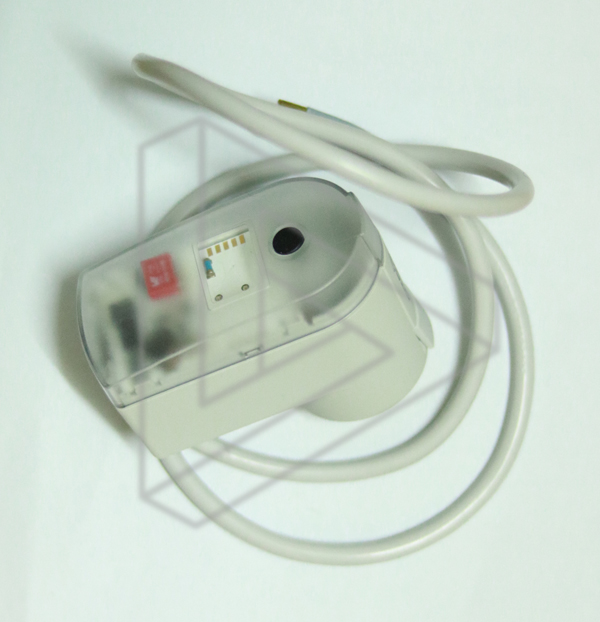

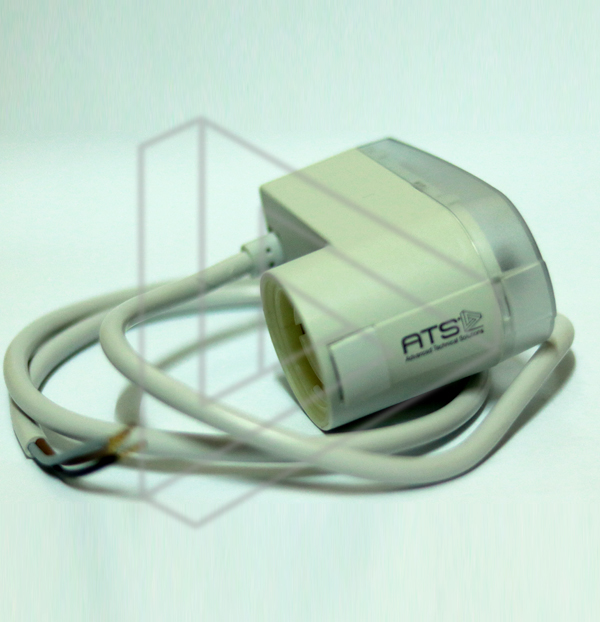

ATS® Motoric Actuator is an electromotive actuator of valves for heating and cooling systems. The actuator is equipped with a LC display with background illumination for displaying the current stroke, the control voltage, and the operating modes (open/close), as well as for the output of error codes. The actuator is equipped with a plug-in connection line as well as with a manual stroke setting which can be used e. g. for maintenance or mounting purposes.

The predominant area of application is the energy-efficient control of water-bearing valves in the area of building services and automation.

BENEFITSFEATURESDOWNLOADSGALLERYWARRANTY

DESIGN		INSTALLATION
	Modern design with LCD screen for stroke & voltage		Simple plug-in installation
	Travel path variants 3.5 to 8.5 mm		360 degree installation position
	Very low standby power consumption		Alignment aid on the valve
OPERATION
	Patented 100% protection in case of leaky valve
	High functional safety and long expected service life
	Short actuation time 15 to 60 s/mm can be configured
	Supplied with retracted valve pressure plate.

	ATS® design		Max. stroke 8.5 mm
	Max. actuation force 200 N (parametrisable in factory)		LC display (stroke, control voltage, error code if necessary)
	Function display via LED		Very short response times
	Maximum energy efficiency due to complete motor control via micro controller		Self-locking gear (de-energized) in all positions
	Antitheft device with removable locking latch		Force-dependent deactivation in case of overload or when the final stop resp. the closing position is reached
	Manual stroke setting		Very low standby power consumption
	Valve adapter system		Simple plug-in installation without tools
	100% protection in case of leaky valves (IP 54)		360° installation position
	Low-noise and maintenance-free		High functional safety and long expected service life
	Customer-specific actuation time set in factory

Product catalog “Motoric Actuator”

Advanced Technical Solutions- ATS© warrants to its customers Actuator to be free of material or manufacturing defects for a period of three (3) years. Any claim brought to the attention of ATS by the customer in writing; within a period of three years of substantial completion, will be taken into examination.

In the event if defect was detected for any of ATS’ Actuator under the terms of the warranty, it will be replaced or repaired free of charge. ATS will not be responsible for any installation costs involved in such replacement or repair, consequential or other damages of any nature. This is in lieu of all other warranties expressed or implied and is the sole warranty extended.
