ATS - FCU Link V2

ATS® FCU-Link™ is an Air Conditioning Fan Coil Unit - Set of Valves and accessories, factory-assembled and pressure tested in the factory that efficiently and logically connect the heating or cooling fan coil and terminal units to the piping network for air-conditioning and heating units.

FCU-Link™ V2 is a Manual Balanced, heating or Air Conditioning Fan Coil Unit - Set of Valves and accessories designed to efficiently connect the terminal unit and the heating or AC Fan coil unit to the hot or chilled water-piping network within the structure or commercial building. It is a factory tested and ready to install unit.

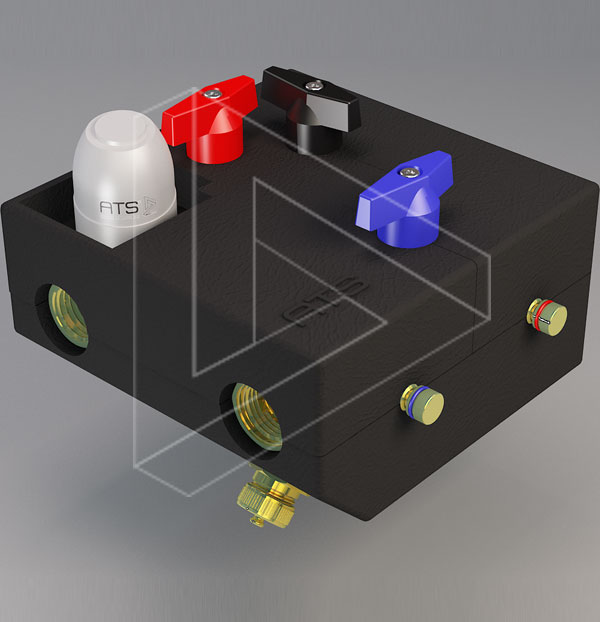

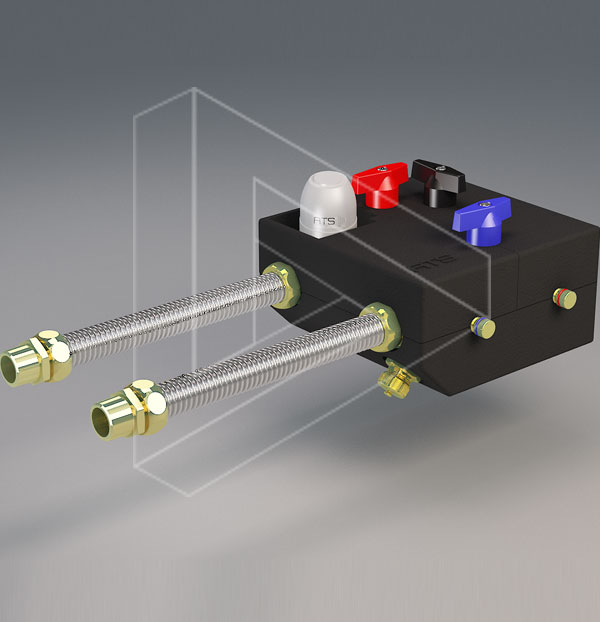

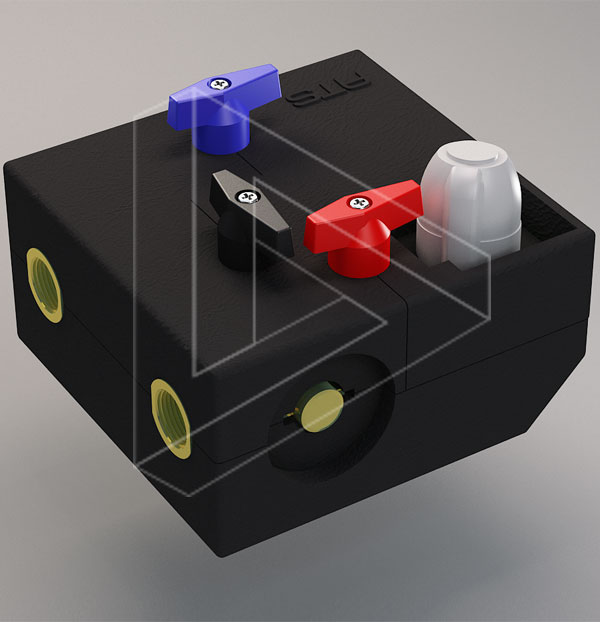

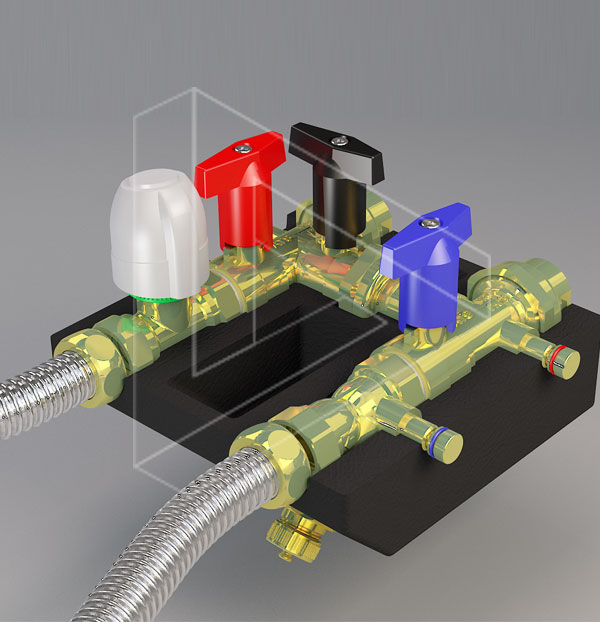

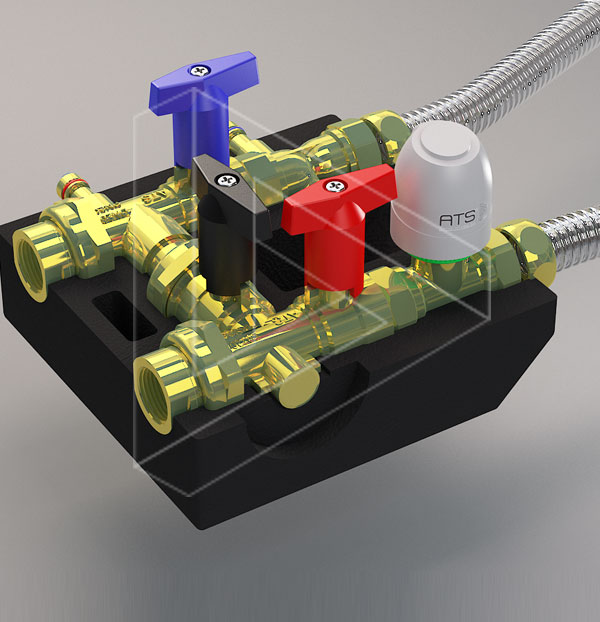

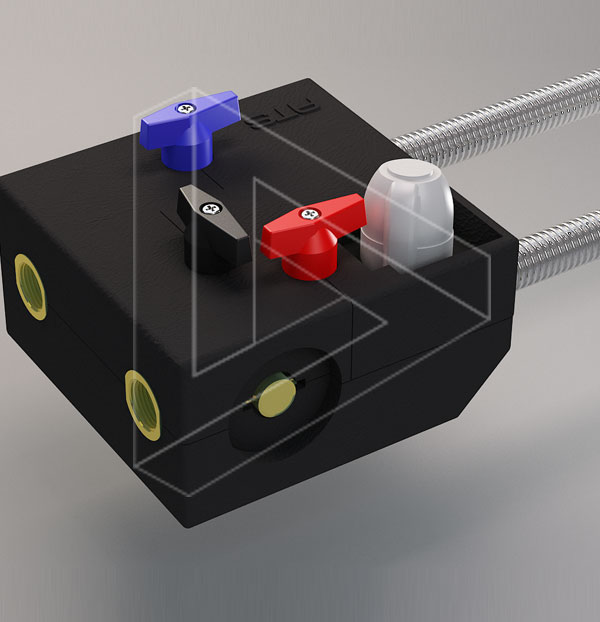

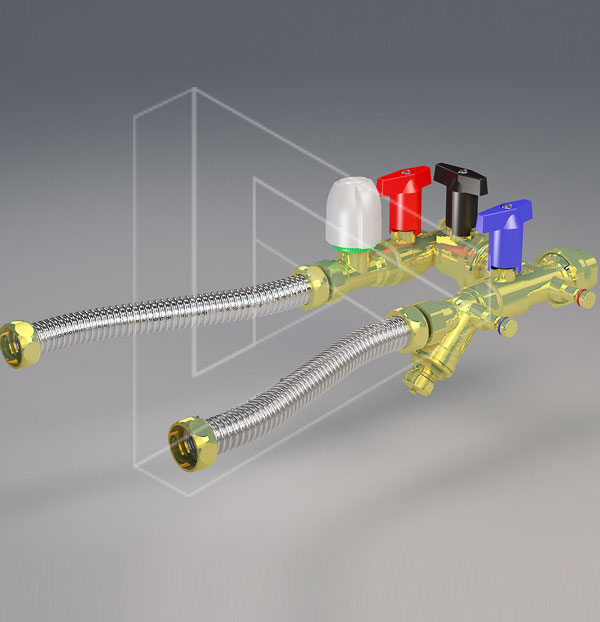

FCU-Link™ V2 is a single assembly that combines the two way valve, fixed orifice double regulating valve, isolation valve, strainers, drain valve, flexible hoses and thermal insulation into a single assembly, factory tested, comes with instructions and ready to install unit.

BENEFITSFEATURESDOWNLOADSGALLERYWARRANTY

DESIGN		INSTALLATION
	Compact Solutions that warrants Minimized design and risk		Zero installation errors
	Optimum space utilization with small compact product		Easy for flushing and coil isolation
	Guaranteed performance for the entire assembly set		Specially designed thermal insulation for minimum condensation
			No specialized balancing team required for installation
OPERATION
	Hi-flexibility in adding networks

	One set can cover wide range of flow rates (0.03 - 1.26 l/s ) ( 0.50 - 20 gpm).		Helical stainless steel flexible connection that meets up to 20m cable
	PN 20 tested at 40 bars and 20C		Very Compact, 180 mm ONLY
	Unions with O-ring technology can be tightened by hands for easy assembling		Measuring station with +/- 3 accuracy cut the time required for balancing
	Fixed orifice single Kv value flow		Special DZR alloy
	All around function indicator		High functional safety and long expected service life

Product catalog “FCU-Linktm V2”

Certificate “FCU-Linktm V2”

Advanced Technical Solutions- ATS© warrants to its customers FCU Link V2 to be free of material or manufacturing defects for a period of three (3) years. Any claim brought to the attention of ATS by the customer in writing; within a period of three years of substantial completion, will be taken into examination.

In the event if defect was detected for any of ATS’ FCU Link V2 under the terms of the warranty, it will be replaced or repaired free of charge. ATS will not be responsible for any installation costs involved in such replacement or repair, consequential or other damages of any nature. This is in lieu of all other warranties expressed or implied and is the sole warranty extended.
