ATS - FCU Link V3

ATS® FCU-Link™ is a factory-assembled and factory pressure-tested set of valves and accessories that intelligently and efficiently connect fan coil and terminal units to the piping network for heating and air conditioning units.

FCU-Link™ V3 is a heating or Air Conditioning Fan Coil - set of valves and accessories that are designed to connect the Fan coil unit and the terminal unit to the chilled water or the hot water piping networks within a building. It is a factory tested and ready to install unit.

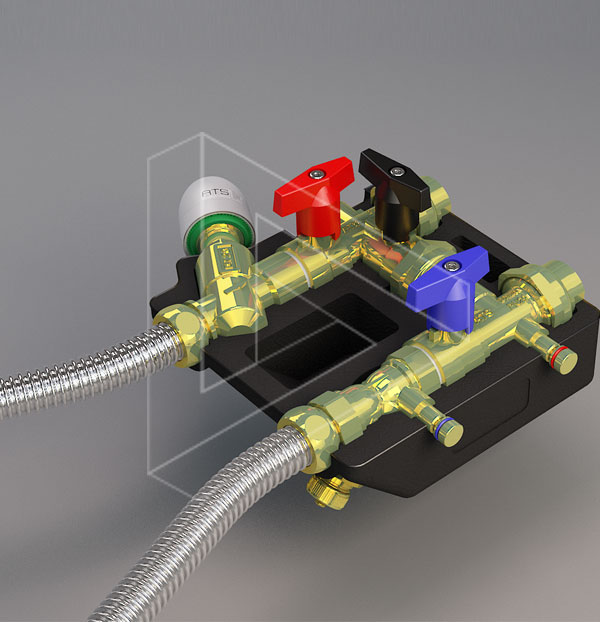

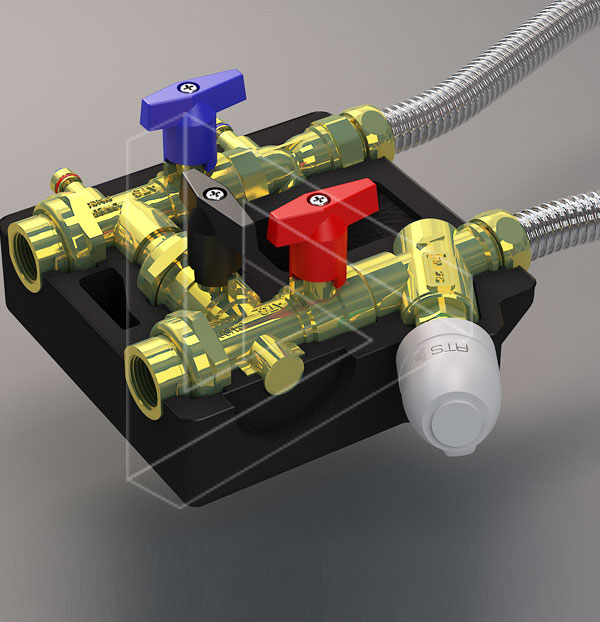

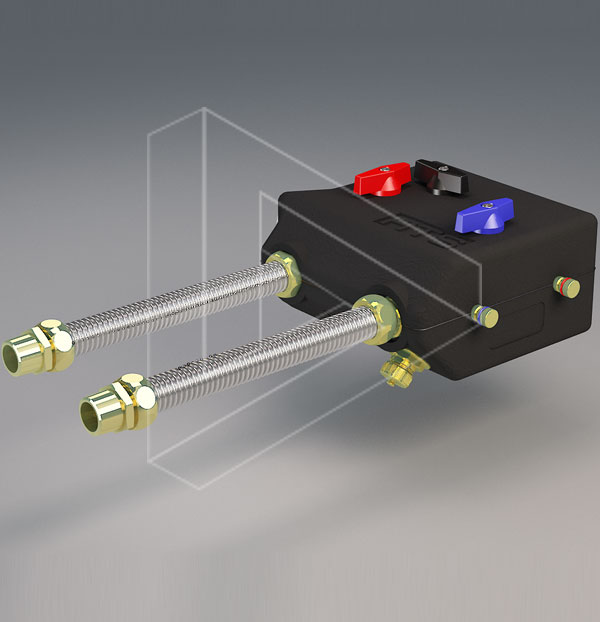

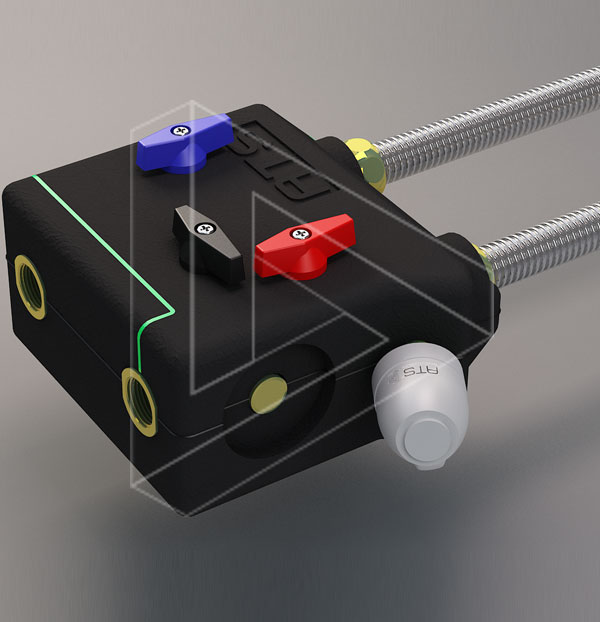

FCU-Link™ V3 combines the pressure independent control valve, isolation valve, strainers, drain valve, flexible hoses and thermal insulation into a single assembly. This time and cost-saving unit, heating and air conditioning Fan Coil - set of valves is pressure tested in our factory and comes ready to install with instructions.

BENEFITSFEATURESDOWNLOADSGALLERYWARRANTY

DESIGN		INSTALLATION
	Compact Solutions that warrants Minimized design and risk		Zero installation errors
	Optimum space utilization with small compact product		Easy for flushing and coil isolation
	Guaranteed performance for the entire assembly set		Specially designed thermal insulation for minimum condensation
			No specialized balancing team required for installation
OPERATION
	Hi-flexibility in adding networks

	Available in 20mm and 25mm sizes		Integral union joints for easy alignment and tightening
	Extended T-handle isolation valves		Full bore isolating valve for supply, return and bypass
	Strainer is integrated with drain cock for compact installation		P/T plugs provided to check the flow rate and temperature

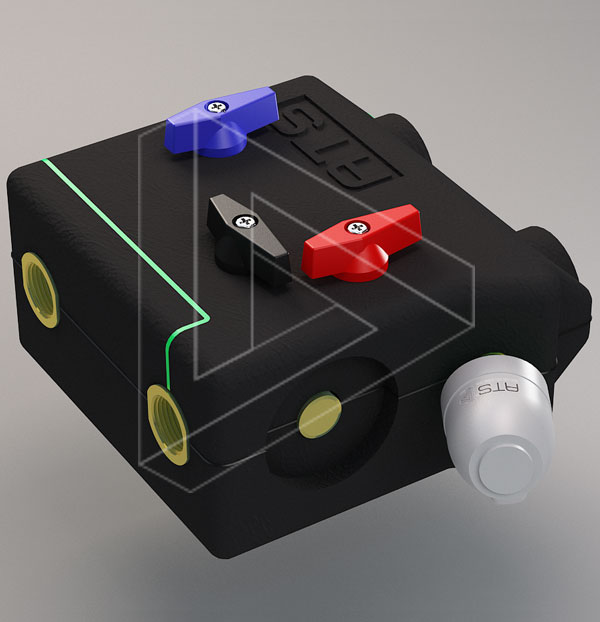

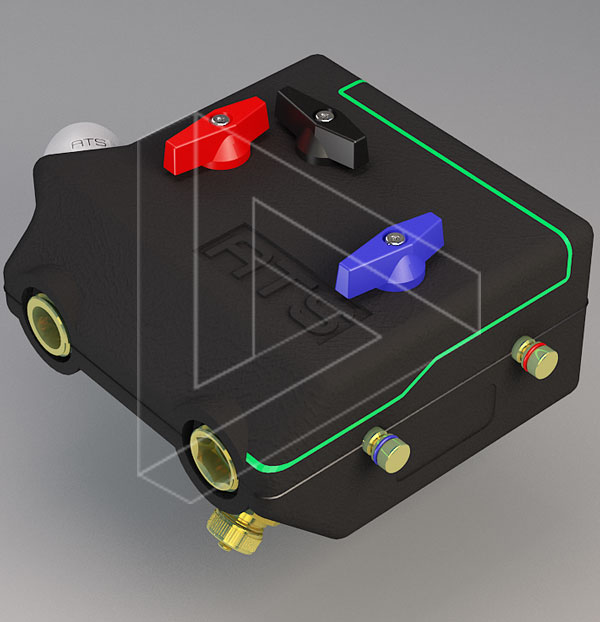

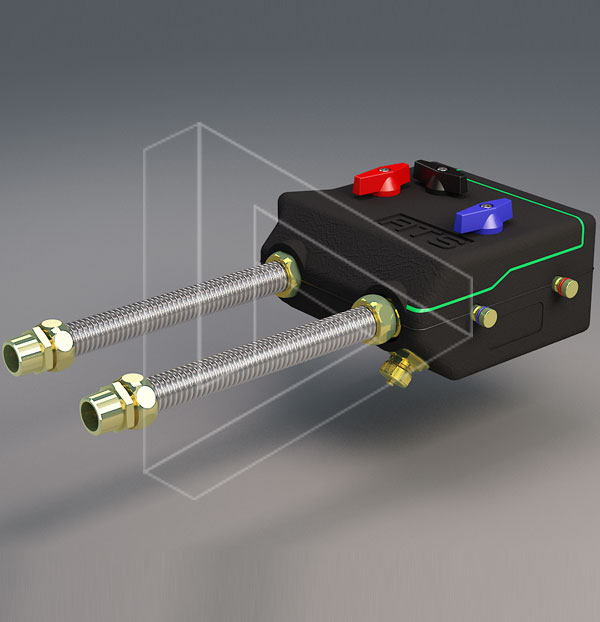

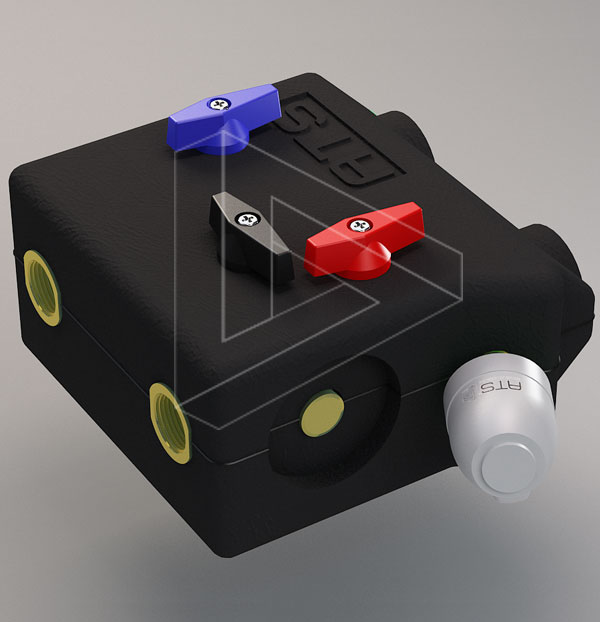

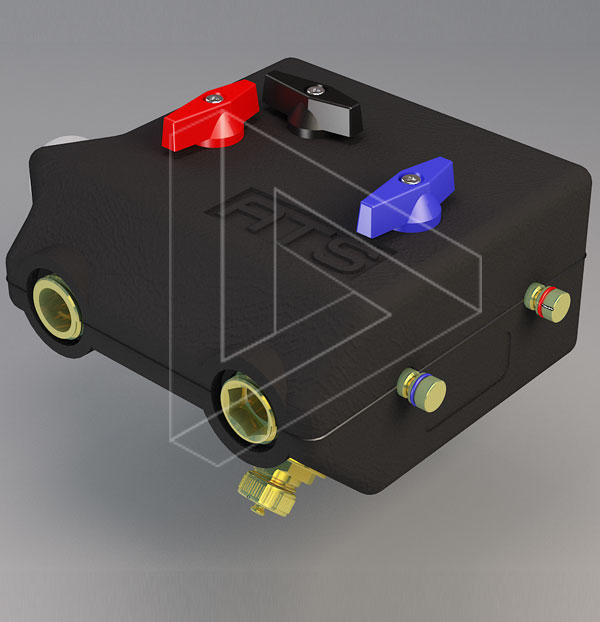

	Special thermal insulation boxes provided as a standard accessory		Flexible hoses of length 30mm suitable for the site conditions, provided as a standard accessory
	230V/24V on/off and 0~10V modulating actuator available

Product catalog “FCU-Linktm V3”

Certificate “FCU-Linktm V3”

Advanced Technical Solutions- ATS© warrants to its customers FCU Link V3 to be free of material or manufacturing defects for a period of three (3) years. Any claim brought to the attention of ATS by the customer in writing; within a period of three years of substantial completion, will be taken into examination.

In the event if defect was detected for any of ATS’ FCU Link V3 under the terms of the warranty, it will be replaced or repaired free of charge. ATS will not be responsible for any installation costs involved in such replacement or repair, consequential or other damages of any nature. This is in lieu of all other warranties expressed or implied and is the sole warranty extended.
