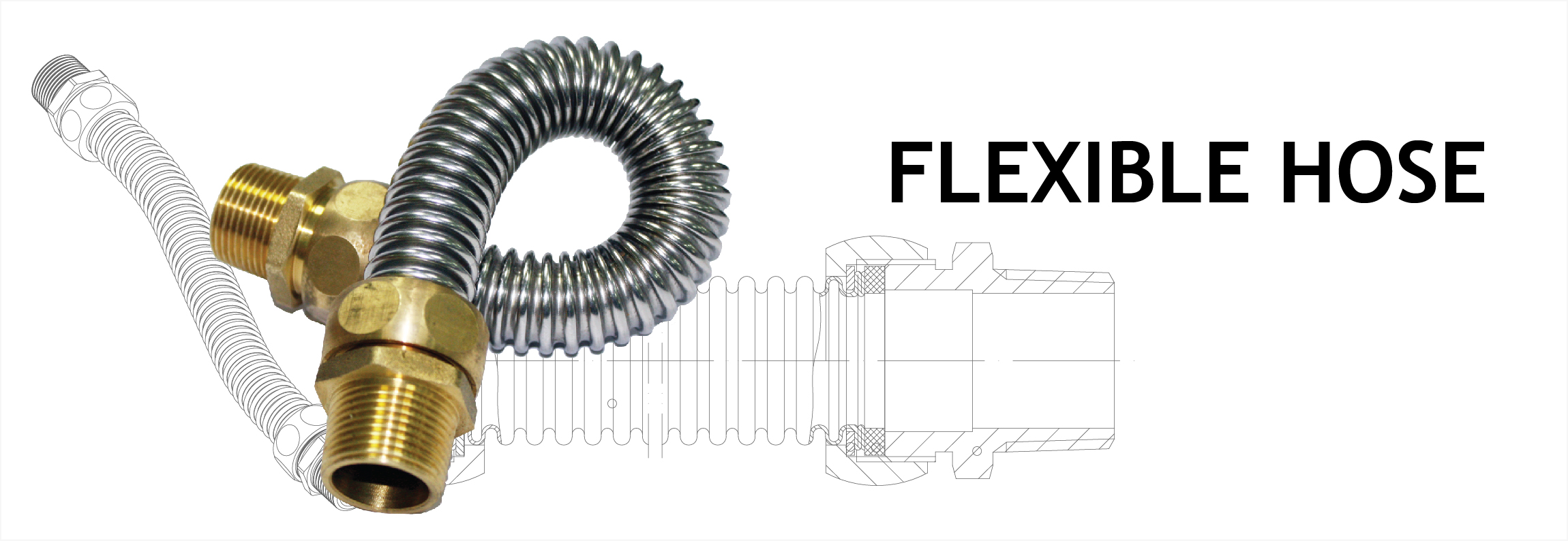

ATS - Flexible Hose

ATS® Flexible Hose is a highly flexible structured, time and cost saving hose assembly which is highly resistant against pressure and temperature.

The application areas of ATS® Flexible Hose is to connect FCU to the Chilled water network.

BENEFITSFEATURESDOWNLOADSGALLERYWARRANTY

DESIGN		INSTALLATION
	Designed & manufactured with high quality SS 304		Easy in installation
	To be fitted with FCU with hot & cold water coming in two sizes 20 & 25 mm		Coming with different length 300, 400 & 600 mm to give flexibility in installation.
OPERATION
	Can be tested with any angle without any loss in flow or pressure drop
	The corrugations are formed like individual rings which are not twisted under high pressure.

	ATS design		Helical stainless steel flexible connecters are compatible for any FCU center to center pipe distance, and have negligible pressure drop at any twisting angle.

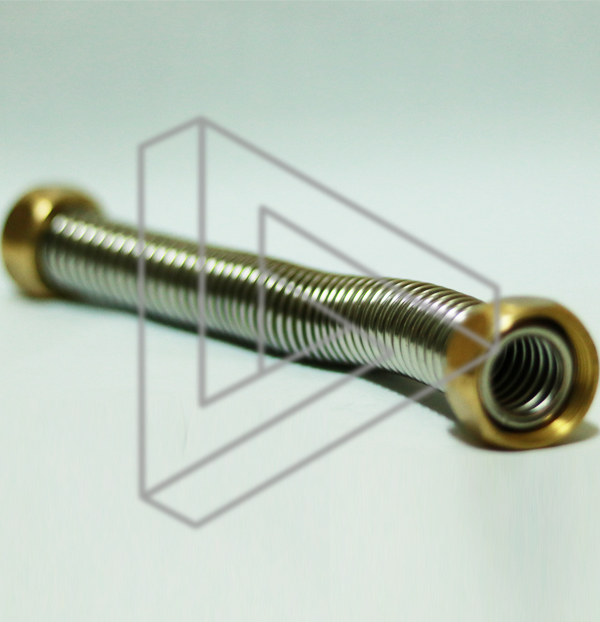

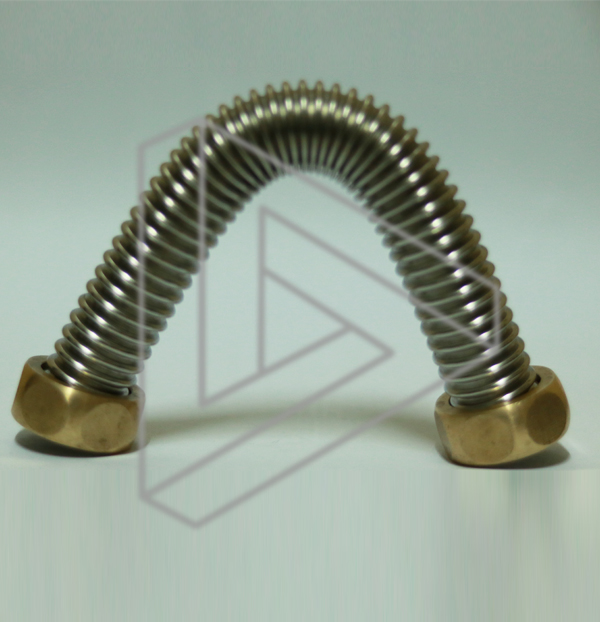

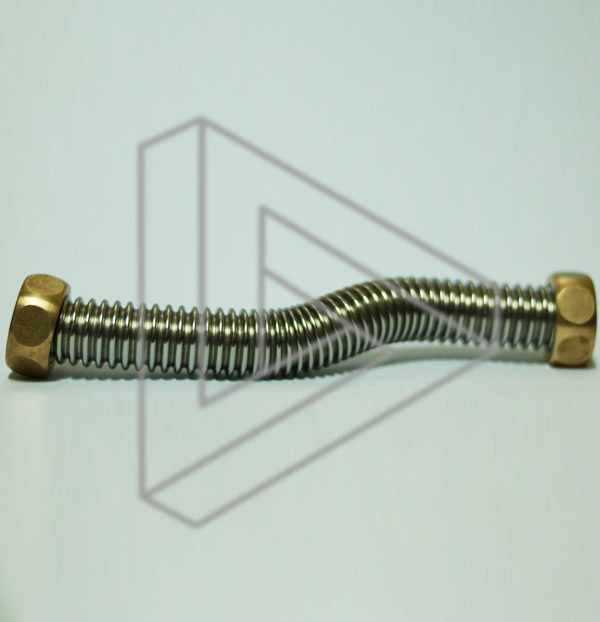

	Flexible hoses are made by corrugating thin-walled stainless steel pipes. They are high quality flexible hoses exposed to complete solution heat treatment. The corrugations are formed like individual rings which are not twisted under high pressure.		The hoses are highly flexible and have excellent strength, corrosion resistance and pressure resistance. And can be twisted to any angle without affecting the circular cross-sectional area of the water flow.
	Available in 20mm and 25mm sizes in diameter.		Flexible connections of length 300, 400 and 600 mm suitable for the site conditions.

Product catalog “Flexible Hose”

Advanced Technical Solutions- ATS© warrants to its customers flexible hose to be free of material or manufacturing defects for a period of three (3) years. Any claim brought to the attention of ATS by the customer in writing; within a period of three years of substantial completion, will be taken into examination.

In the event if defect was detected for any of ATS’ flexible hose under the terms of the warranty, it will be replaced or repaired free of charge. ATS will not be responsible for any installation costs involved in such replacement or repair, consequential or other damages of any nature. This is in lieu of all other warranties expressed or implied and is the sole warranty extended.

To understand and respond to the many challenges
our customers face in accuracy, complexity and
efficiency of HVAC systems. Together with a diverse
portfolio of Green products, ATS® supports its
customers with top quality HVAC Systems Designs.
